Description

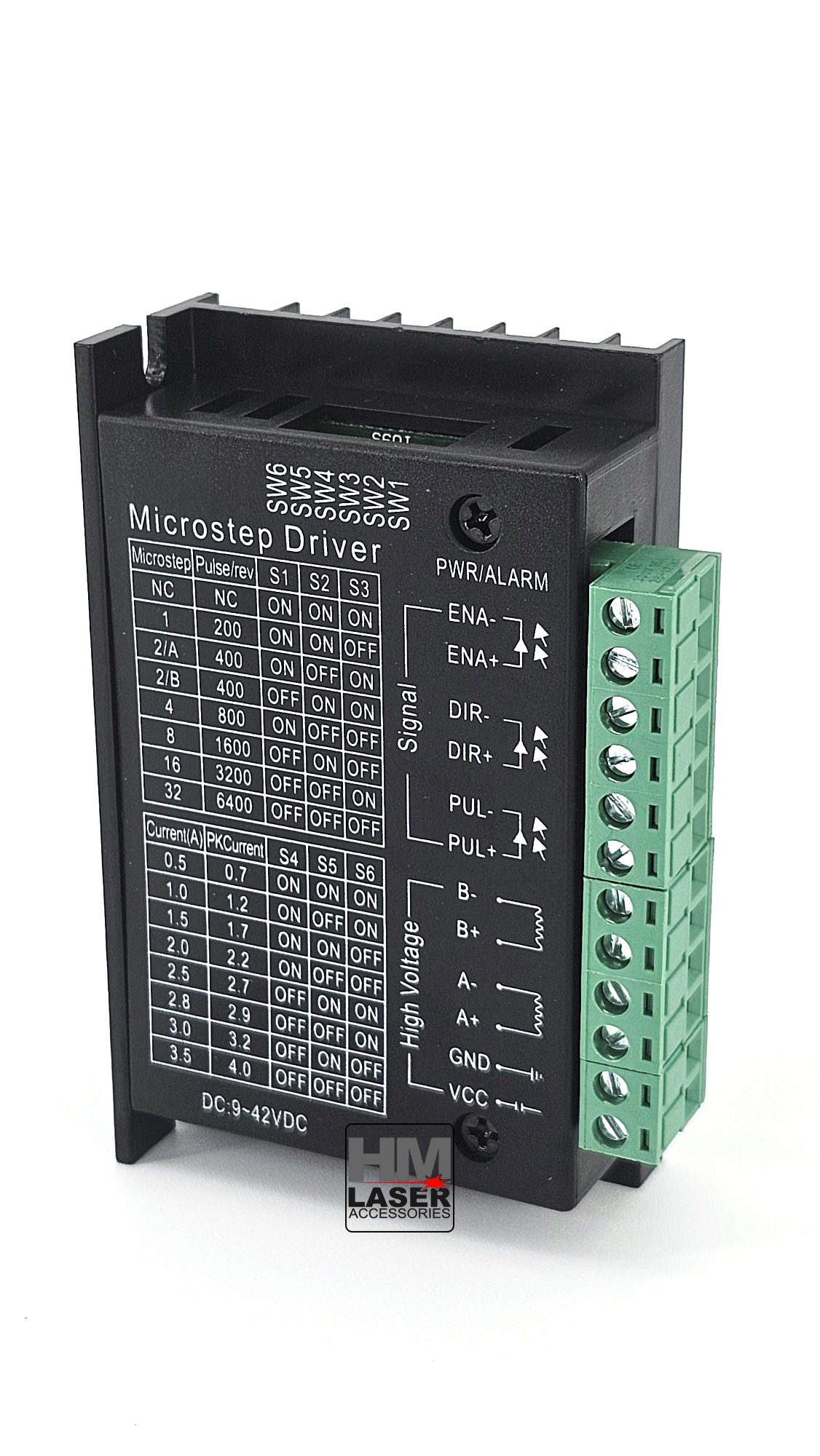

This driver is an upgraded version of the TB6600.
Suitable for 2-phase, 4-phase, & hybrid stepper motors (4-wire, 6-wire, 8-wire), type 42, 57, and 86.
1. 9V-42V DC power supply
2. H-bridge bipolar constant phase current drive
3. Output current to 4.0A maximum
4. Stepping to 32 microsteps
5. Input signal high-speed opto-isolation
6. Standard co positive single pulse interface
7. Offline hold function
8. The semi enclosed casing can adapt to more demanding environments
9. Provide energy-saving semi-automatic current locking function
10. Built in temperature protection and overcurrent protection
Ste
Standard shipping method is USPS Ground Advantage.
International customers please request a shipping quote which will then be applied via additional invoice.
